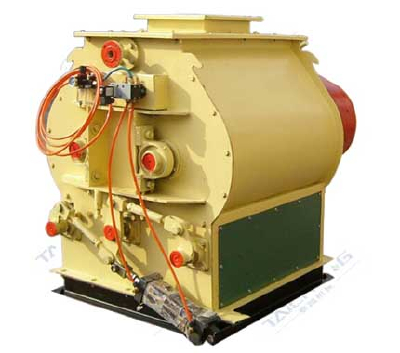

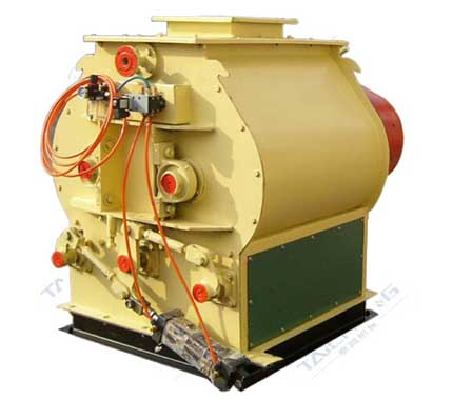

Dual-axis mixer

Dual-axis mixer

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: china port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-04-15
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  china
  • Brand Name:  Jinan Taichang Transmission Machinery Co.,Ltd
  • Model Number:  60012
  • Weight: 900.000 kg

Mainly used in the production of feed and organic fertilizer industry

The internal structure: biaxial paddle

Discharging mode: manual and automatic

Mixer batch mixing, stirring a 40-90 seconds

Large amount of liquid added: add 30% liquid still can mix the material evenly, can be mixed sticky materials

Mixer mixing soft, can be used for drying or cooling: because it has mixed soft, does not damage the material original features, so add hot or cold air system, as a dry, cool;

Mixer adopts three rows of chain sprocket chain structure, by the cycloidal reducer drive the rotor rotation, violent transmission mechanism is unique, smooth operation, transmission torque, low abrasion.





This machine is composed of two rotating in the opposite direction of the rotor, the rotor welding have multiple special Angle of the blade, blade drive material along the tank wall counterclockwise: on the one hand on the one hand, drive material turning around Cross overlap, formed a floating zone, in the area, regardless of the shape, size and density of the material, can make the material rise, in moments of weightlessness, so that the material in the machine groove omni-directional continuous loop turn, overlapping shear, so as to achieve the effect of rapid mixing soft.



  • Size:  1
  • Place of Origin:  china
  • Brand Name:  Jinan Taichang Transmission Machinery Co.,Ltd
  • Model Number:  60012
  • Weight: 900.000 kg
